PCB pinouts
Hinweis: Alle Pinouts ohne Gewähr...wie so oft. :)

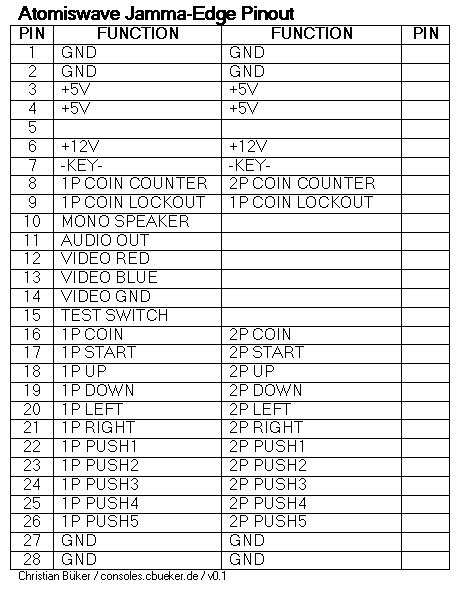

Atomiswave Jamma-Edge Connector

*Vorabversion 0.1 - unvollständig und ohne gewähr! Grundsätzlich Jamma, jedoch mit 5 Buttons pro Spieler*

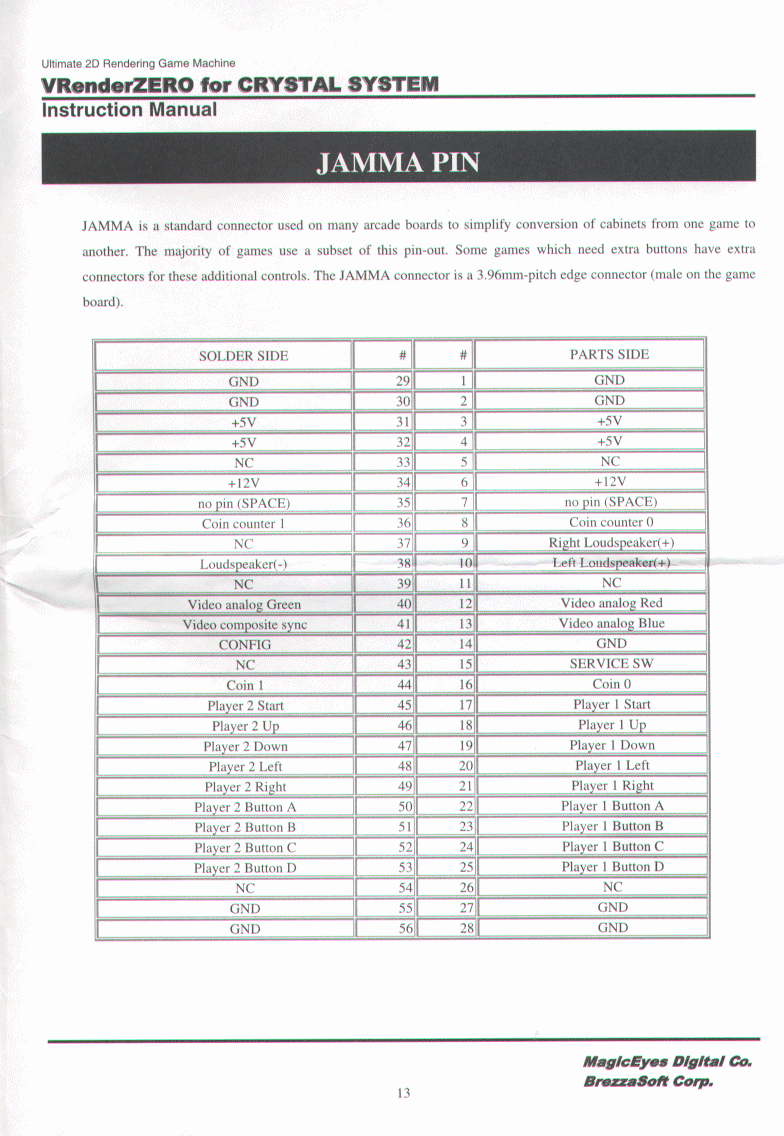

Crystal System PCB Edge Connector

*Scan aus dem Manual (thx an realboutcf)*
Standard JAMMA Edge Connector

*der 'Japanese Arcade Machine Manufacturer' Standardanschluß*

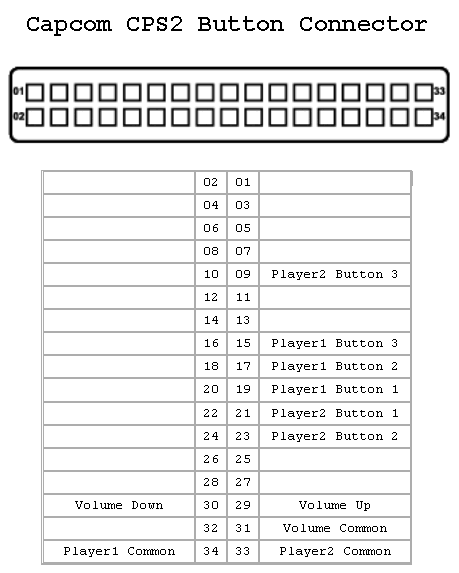

Capcom CPS2 Button Connector Pinout

*der andere ist eine standard JAMMA-Edge*
Moon Patrol PCB

*Manual zu Moon Patrol*
Aero Fighters

*Auszug aus dem AF-Manual*
Wizard of Wor

*Pinouts (DE/EN) und DIP-Settings*
Kung-Fu Master

*Pinouts und DIP-Settings*
Tetris

*Tetris Manual*
|
