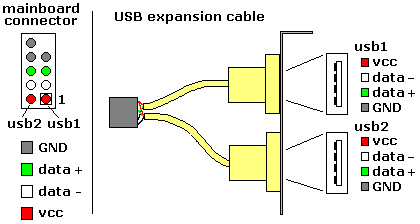

USB MoBo Connector

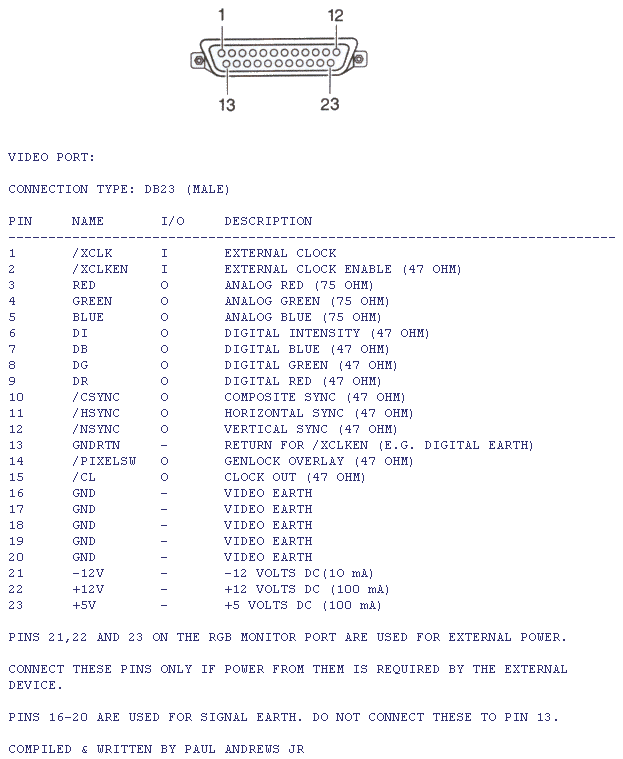

Amiga RGB Pinout

VGA Video Pinout

VGA Adapter / 15-Pin HDD-Type Female Connector 01 Red Video 02 Green Video 03 Blue Video 04 Monitor ID - Bit 2 05 GND 06 Red GND 07 Green GND 08 Blue GND 09 [KEY] 10 Sync GND 11 Monitor ID - Bit 1 12 Monitor ID - Bit 0 13 Horizontal Sync 14 Vertical Sync 15 N/C (Reserved)

Amiga Keyboard Pinouts

DIN / PS2-Mini-DIN Pin A1000 A2/3000 CD32 A4000 --------------------------------------------- 1 +5V KCLK DATA I/O 2 CLOCK KDAT TxD n/c 3 DATA NC GND Ground 4 GND GND +5V +5VDC (100mA) 5 +5V CLOCK Clock 6 RxD n/c A1000 is RJ12 jack. A2000/3000 is a 5-pin DIN female. CD32 is a 6-pin miniDIN female. A4000 is a 6-pin miniDIN female. :source:

C64/C128 Scartkabel

8-poliger DIN-Stecker (männlich) zum C64/C128 Scart (männlich) Signal DIN Scart LUM 1 20 CHROMA 8 15 GND 2 4+17 Audio 3 2+6 :source:

Amiga Scartkabel

23-poliger DSub-Stecker (weiblich) zum Amiga-RGB Port Scart (männlich) Amiga TV Analog Red 3 15 RGB Red In Analog Green 4 11 RGB Green In Analog Blue 5 7 RGB Blue In Composite Sync 10 20 Video In Video GND 17 17 Video GND GND 19 18 Blanking GND +12V 22 16 Blanking (Connect via a 150 Ohm resistor) +12V 22 8 Audio/RGB switch (Connect via a 1 kOhm resistor)         Phono Right   2 Audio IN Right Phono Right GND   4 GND         Phono Left   6 Audio IN Left Phono Left GND   4 GND :source:
